Simple trig
For C = 1 To iterations
xangle = xangle + xinc
yangle = yangle + yinc
RN1 = RN1 + xinc: If RN1 > 1 Then RN1 = 0
RN2 = RN2 + yinc: If RN2 > 1 Then RN2 = 0
X = RN1 * (Cos(xangle) * ra) + 400
Y = RN2 * (Sin(yangle) * ra) + 400
viewport.PSet (X, Y), RGB(rd, gn, bl)
Next C
|
|

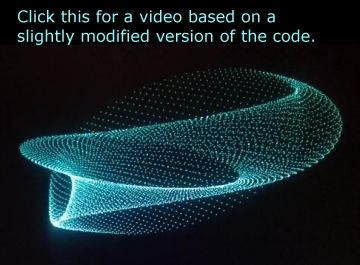

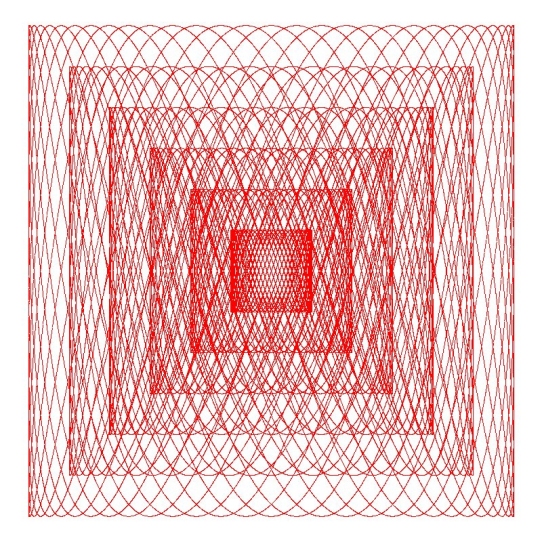

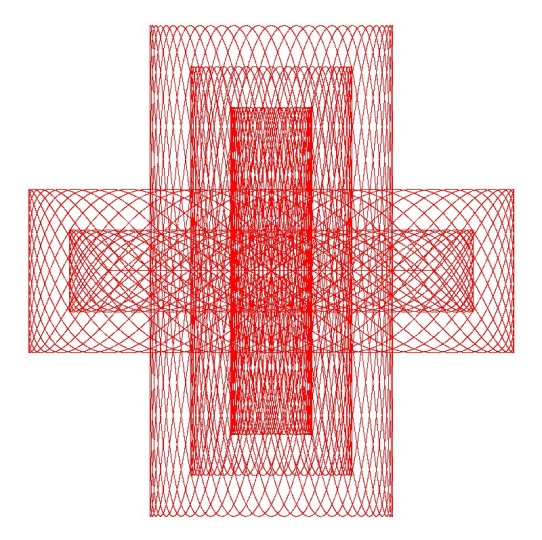

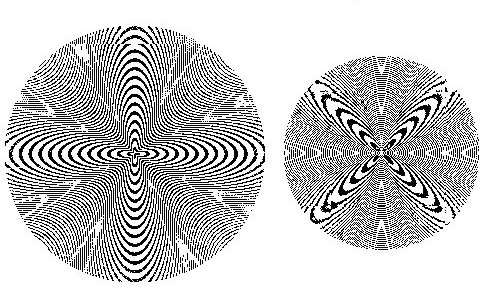

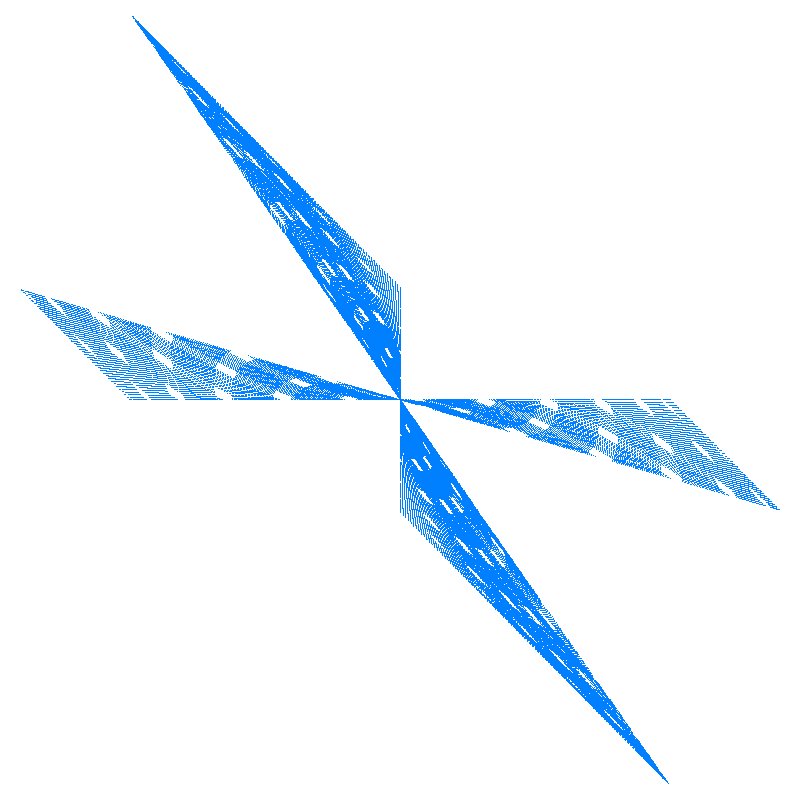

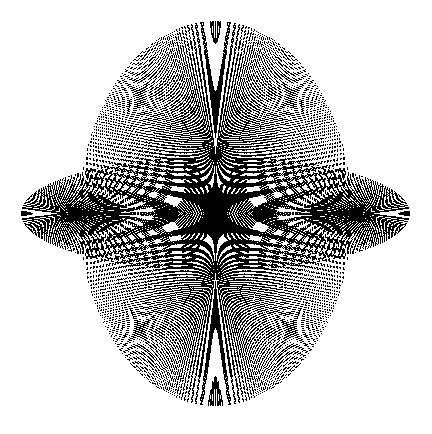

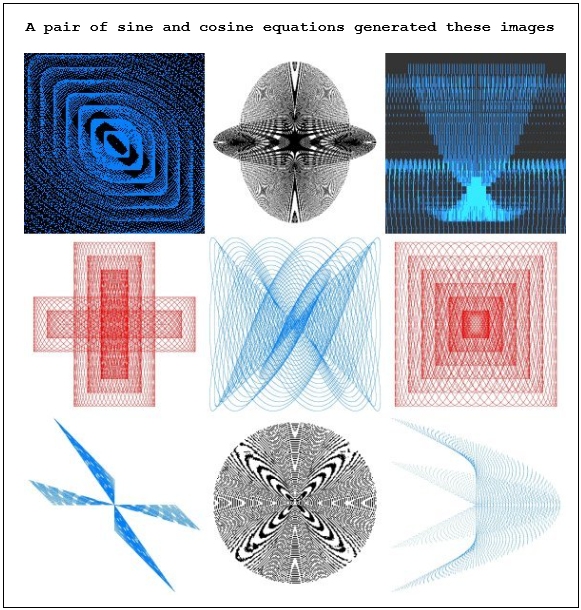

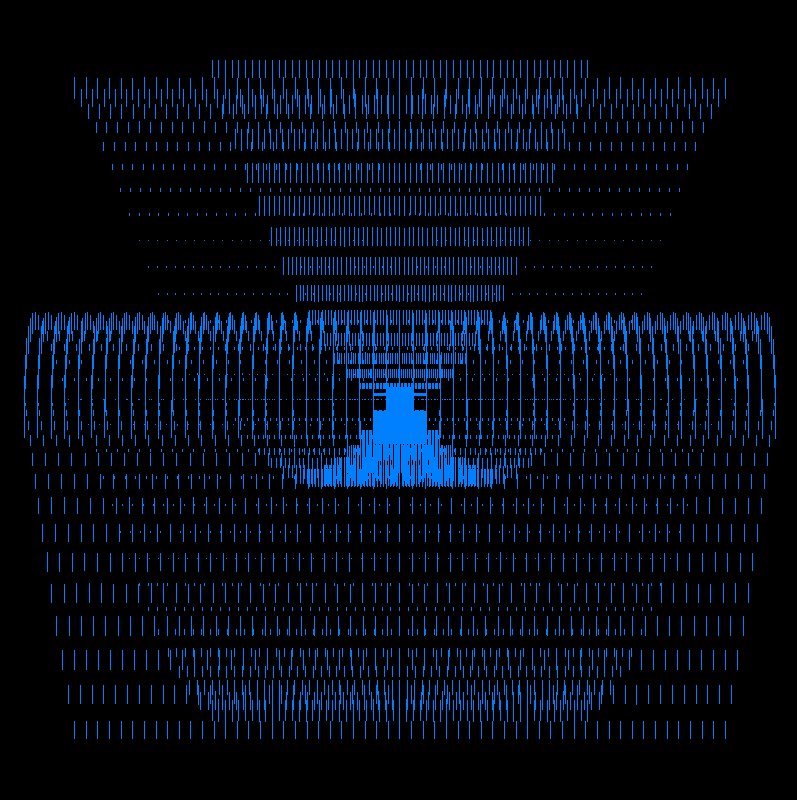

I played a hunch and came up with an algorithm for a pair of iterated trig equations, with offsetting scalar multipliers for each equation. Elaborate patterns appeared which went way beyond what I could have imagined. This program plots the sine of an incremently increasing angle and the cosine of an incremently increasing angle on the same graph. The user has the option of making those increments the same or different. The user can also specify whether the scalar multiplier is the same or different for the two equations. The most interesting patterns are generated when the increments are the same or extremely close to the same. Offsetting the scalar multipliers affects the symmetry in interesting ways. 40,000 to 1,000,000 iterations are typically optimal. The complete Visual BASIC program code is displayed further down. (02/04/17 update: I've just begun generating 3D images of these trig equations. Some of the full-size 3D images are shown further down on this page.) Some 2D images: |
3D version thumbnails |

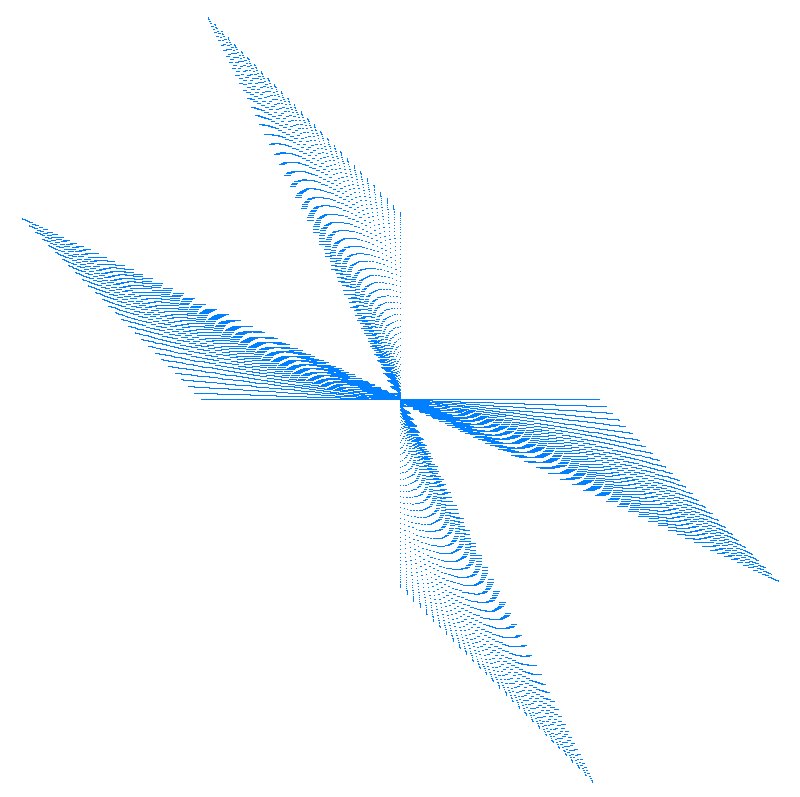

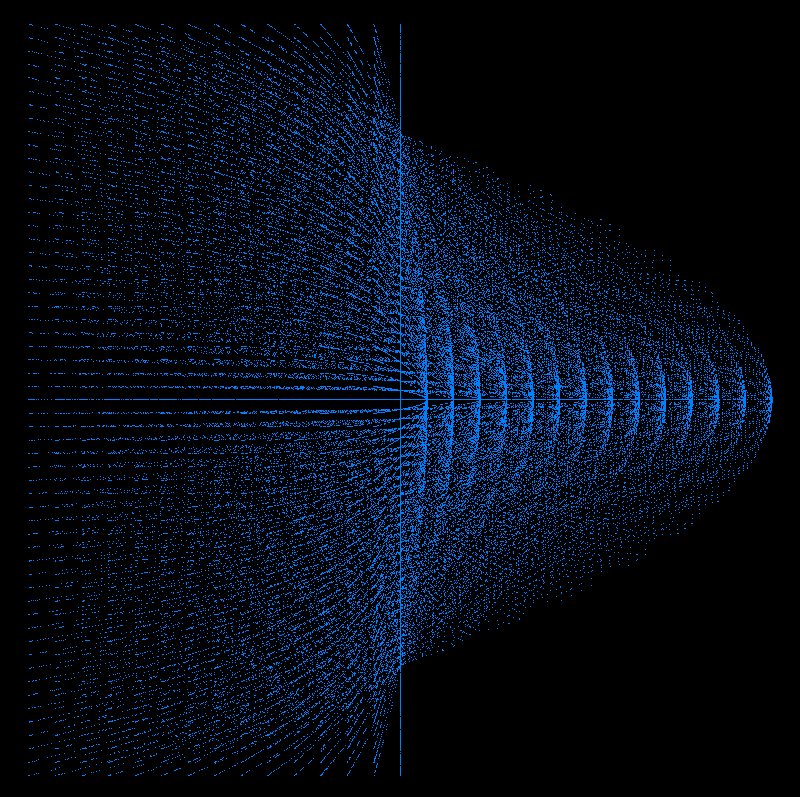

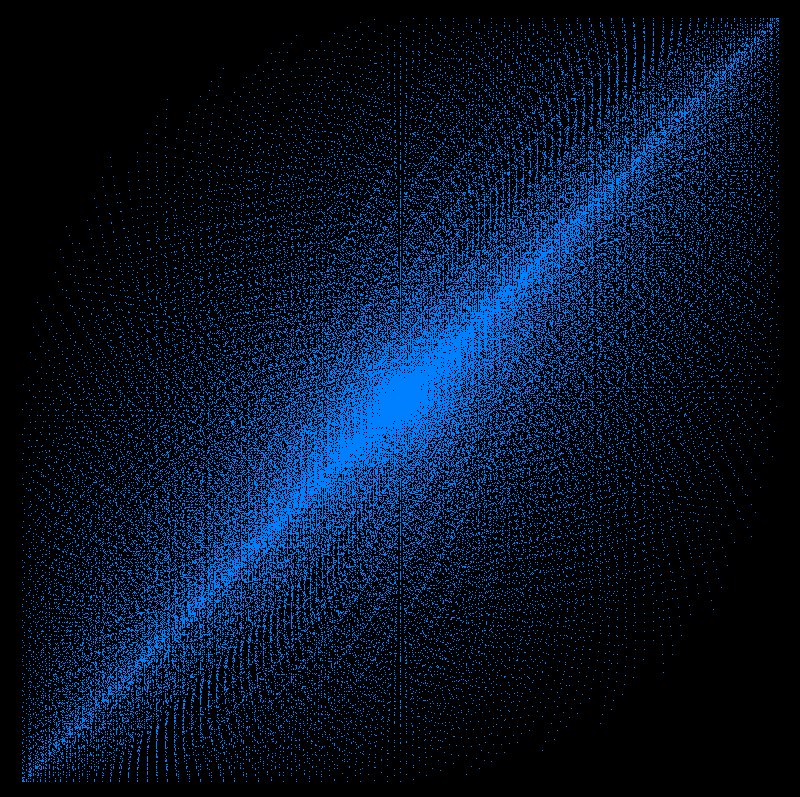

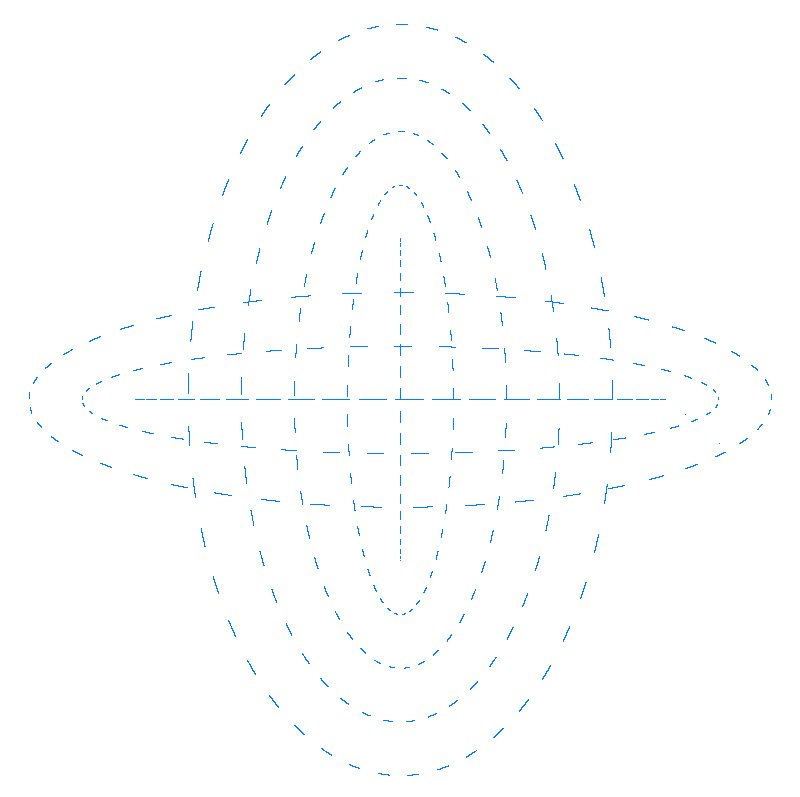

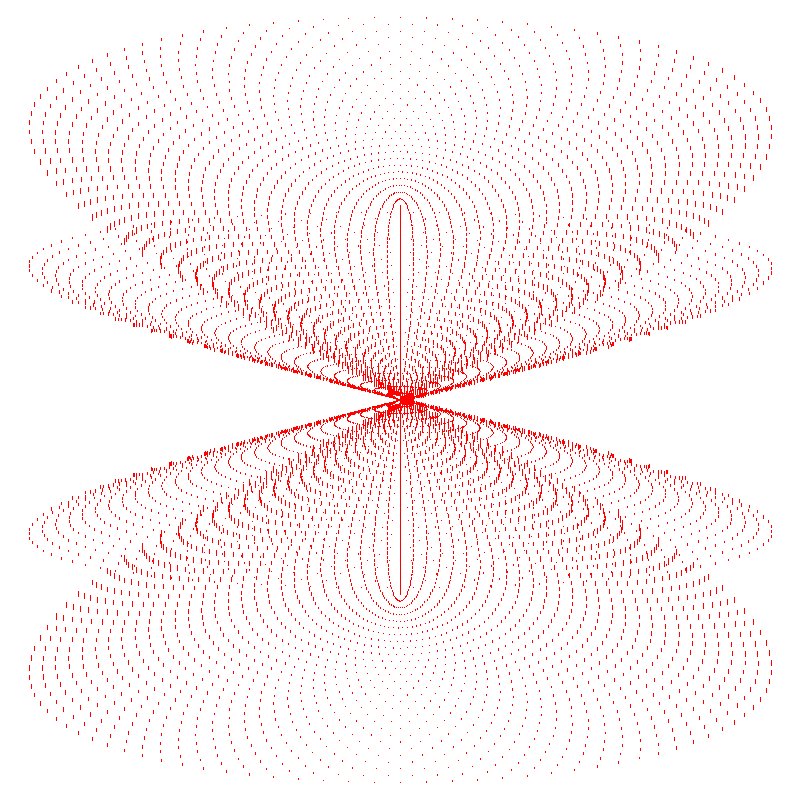

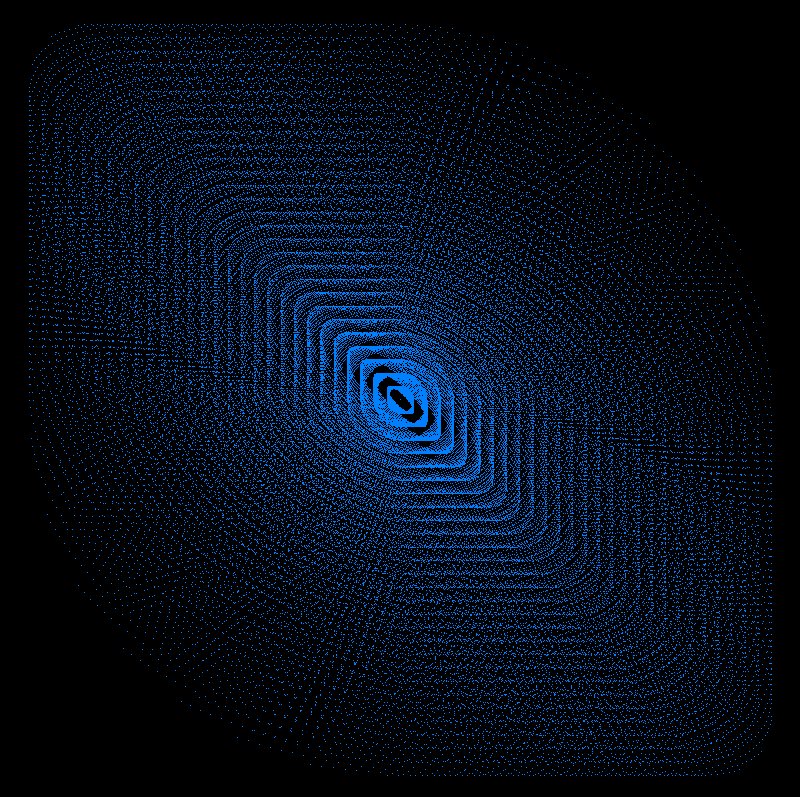

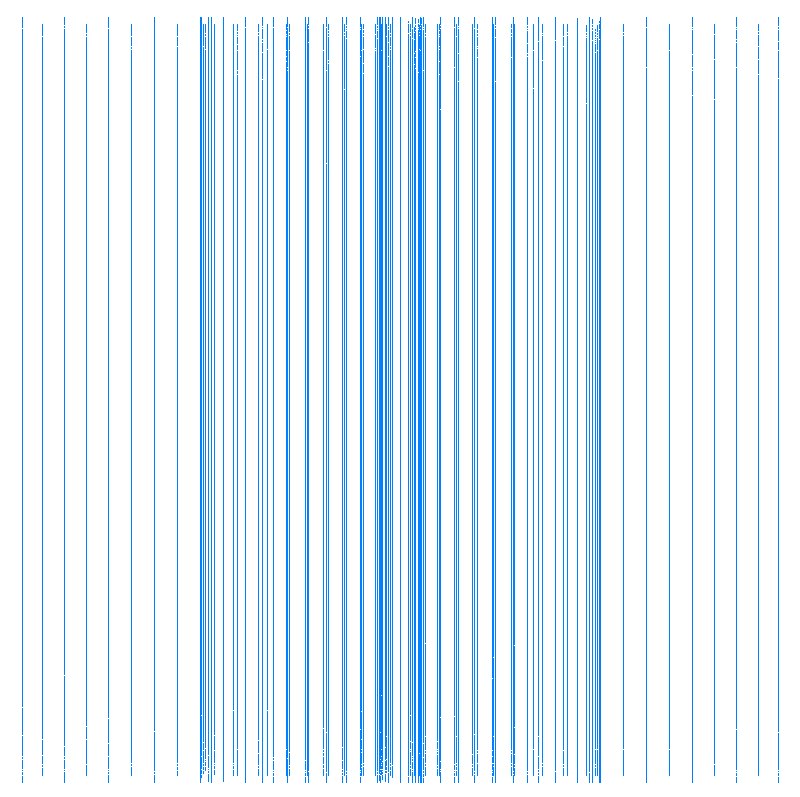

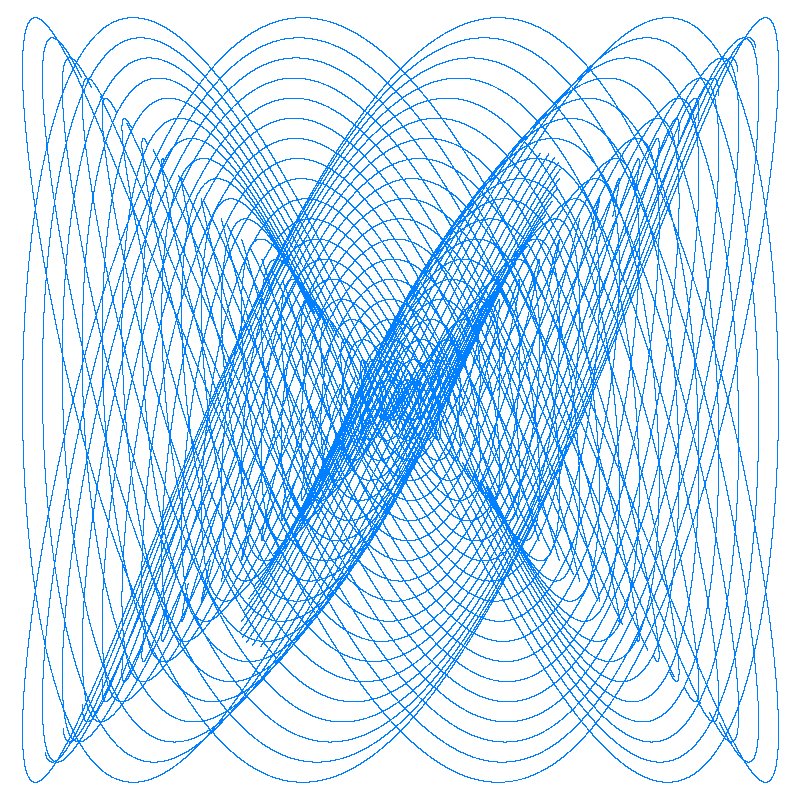

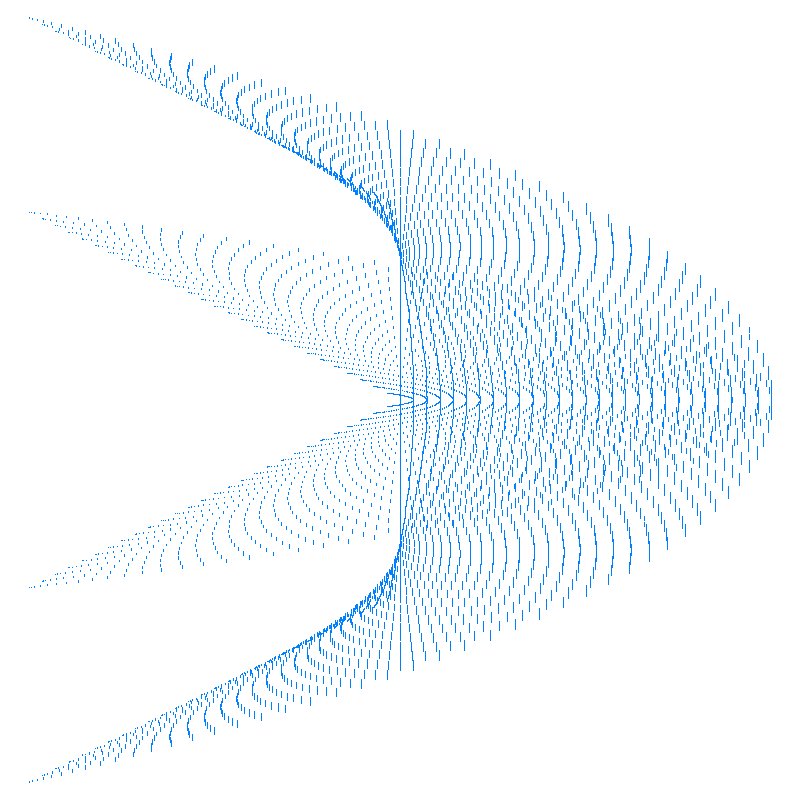

More 2D images: (3D images are further down) Smart phone users should orient their screen to portrait position. |
My Visual BASIC program code: (2D) (3D further down)
Private Sub trigrunbtn_Click()
iter = Val(iterbox.Text)
xinc = Val(xincbox.Text) * (3.14159265358979 / 180)
yinc = Val(yincbox.Text) * (3.14159265358979 / 180)
RN1 = Val(rn1box.Text)
RN2 = Val(rn2box.Text)
For C = 1 To iter
xangle = xangle + xinc
yangle = yangle + yinc
RN1 = RN1 + xinc: If RN1 > 1 Then RN1 = 0
RN2 = RN2 + yinc: If RN2 > 1 Then RN2 = 0
X = RN1 * (Cos(xangle) * 380) + 400 'or sine sine
Y = RN2 * (Sin(yangle) * 380) + 400
viewport.PSet (X, Y), RGB(redd, greenn, bluee)
Next C
End Sub
------------
My Visual BASIC program code: (3D)
(Includes rotation of image around all three axes)
Private Sub trigrunbtn_Click()
iter = Val(iterbox.Text)
xinc = Val(xincbox.Text) * (3.14159265358979 / 180)
yinc = Val(yincbox.Text) * (3.14159265358979 / 180)
zinc = Val(zincbox.Text) * (3.14159265358979 / 180)
RN1 = Val(rn1box.Text)
RN2 = Val(rn2box.Text)
RN3 = Val(rn3box.Text)
RX = RX * (3.14159 / 180)
RY = RY * (3.14159 / 180)
RY = RZ * (3.14159 / 180)
For C = 1 To iter
xangle = xangle + xinc
yangle = yangle + yinc
zangle = zangle + zinc
RN1 = RN1 + R1INC: IF RN1 > 1 THEN RN1 = 0
RN2 = RN2 + R2INC: IF RN2 > 1 THEN RN2 = 0
RN3 = RN3 + R3INC: IF RN3 > 1 THEN RN3 = 0
X = RN1 * SIN(XANGLE)
Y = RN2 * COS(YANGLE)
Z = RN3 * COS(ZANGLE)
Y1 = (Y * COS(RX)) - (Z * SIN(RX))
Z1 = ((Y * SIN(RX)) + (Z * COS(RX)))
X1 = X
Z2 = ((Z1 * COS(RY)) - (X1 * SIN(RY)))
X2 = (Z1 * SIN(RY)) + (X1 * COS(RY))
Y2 = Y1
X3 = (X2 * COS(RZ)) - (Y2 * SIN(RZ))
Y3 = (X2 * SIN(RZ)) + (Y2 * COS(RZ))
Z3 = Z2
GX = (((3.9 * X3) / (4 - Y3)) * RA) + 320
GZ = -(((3.9 * Z3) / (4 - Y3)) * RA) + 260
viewport.PSet (GX, GY), RGB(redd, greenn, bluee)
Next C
End Sub
====================================================
home
Balloting
Simple trig
Logistic map
The Attractor of Henon
Number doubling
Barnsley's Fern
The Sierpinski Triangle
|
-----------------------

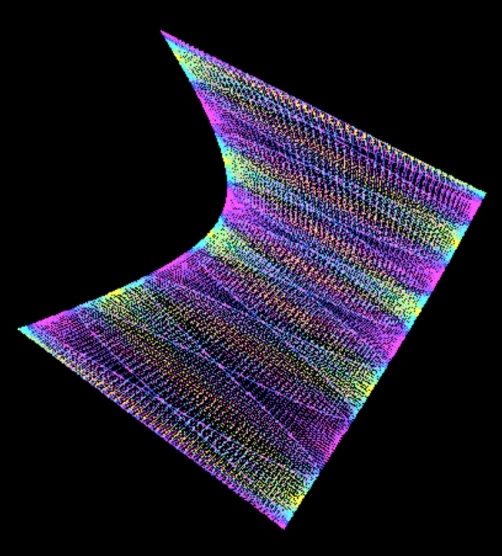

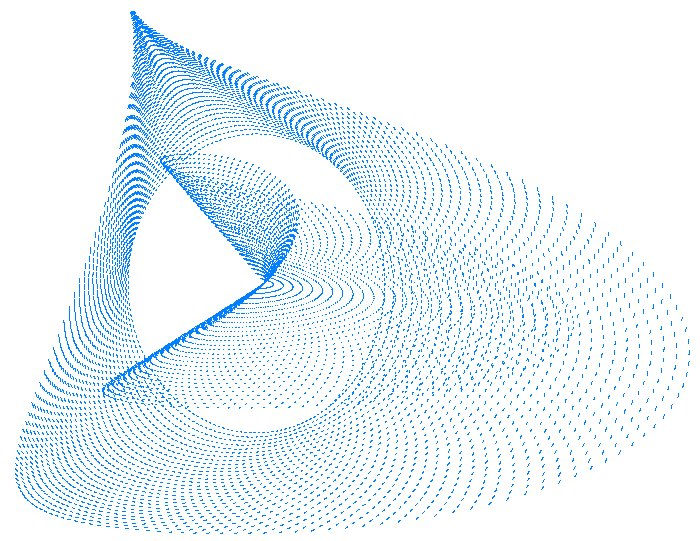

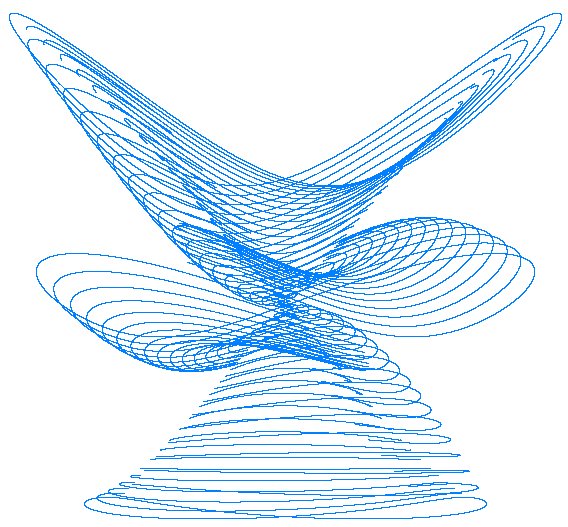

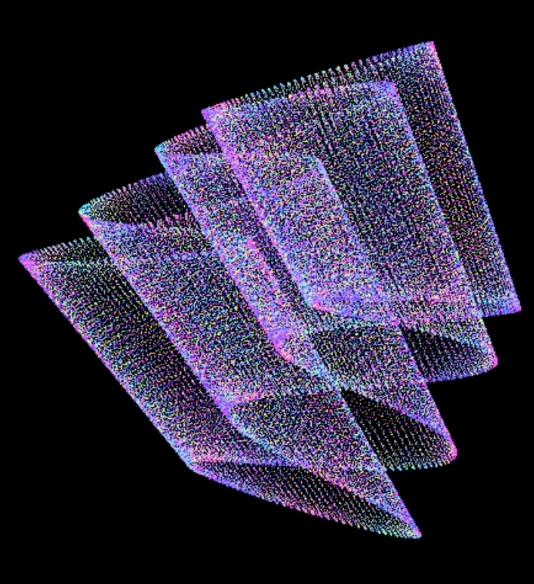

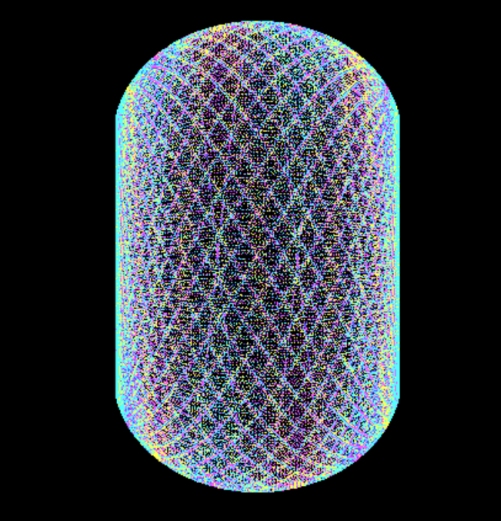

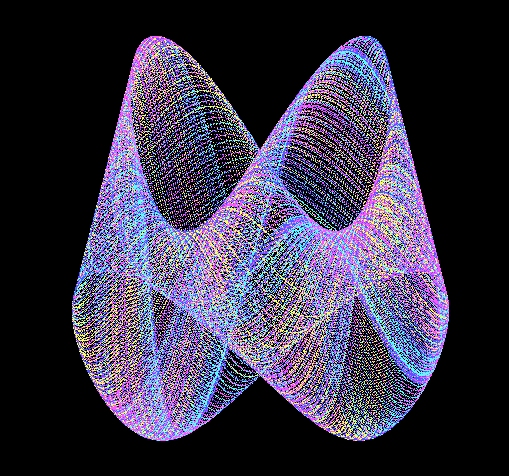

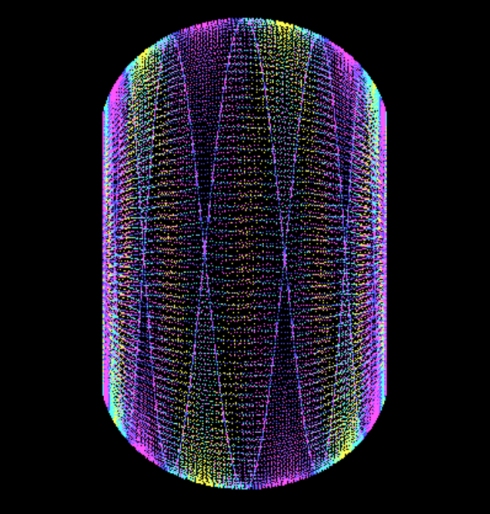

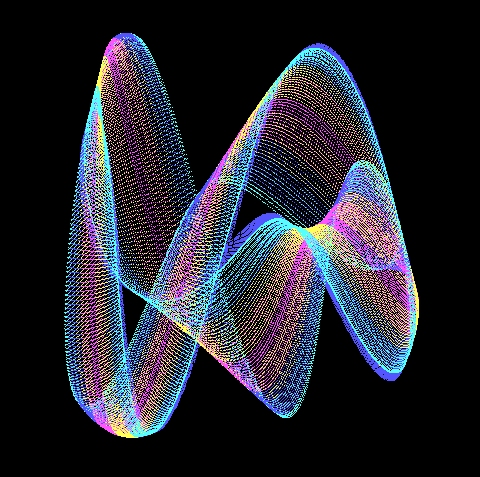

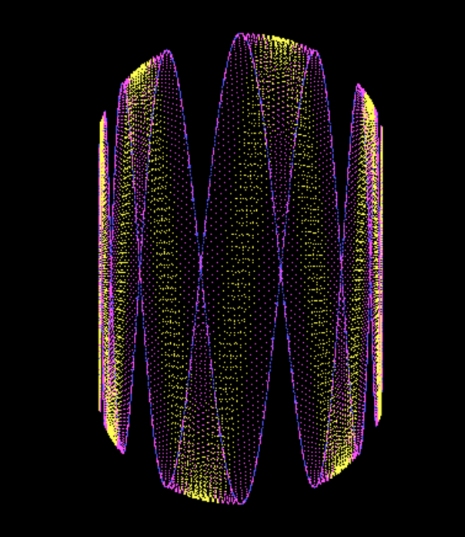

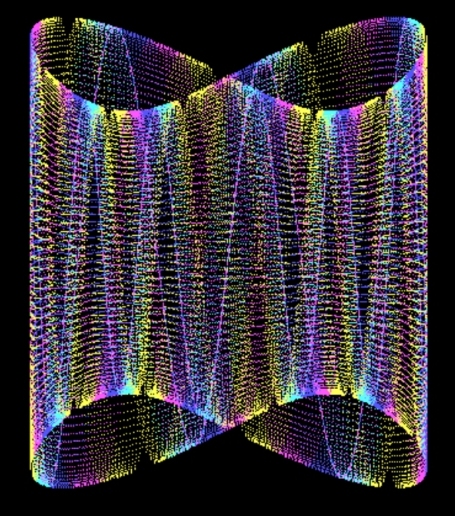

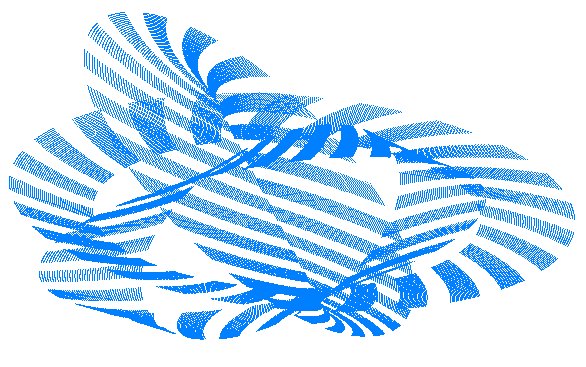

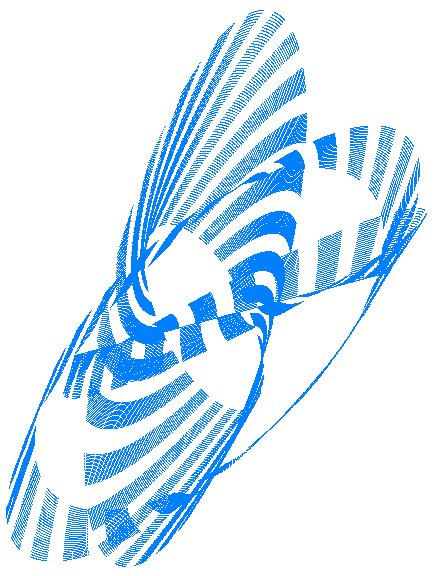

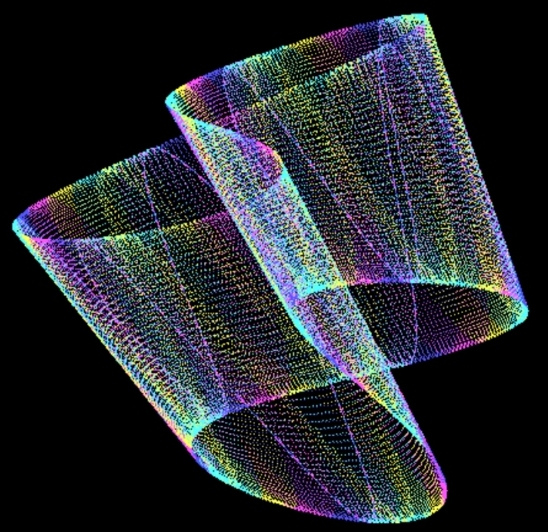

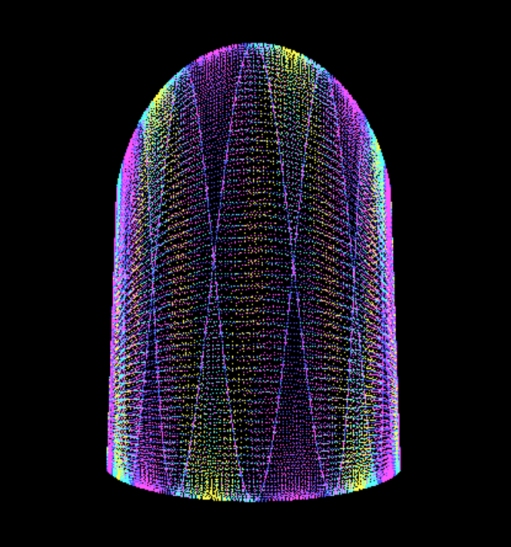

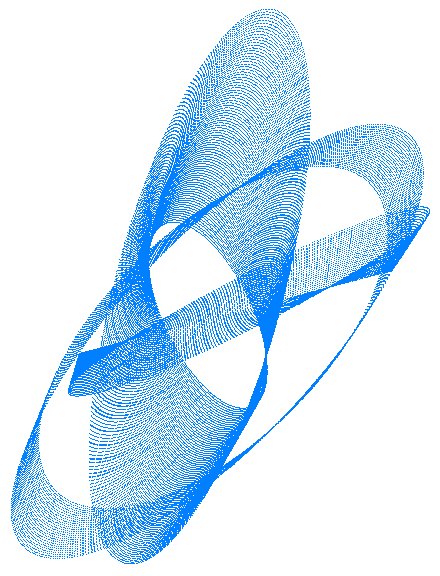

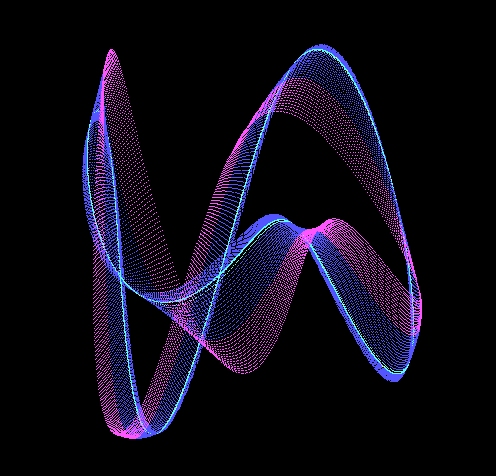

Here are some 3D images
-----------------------
